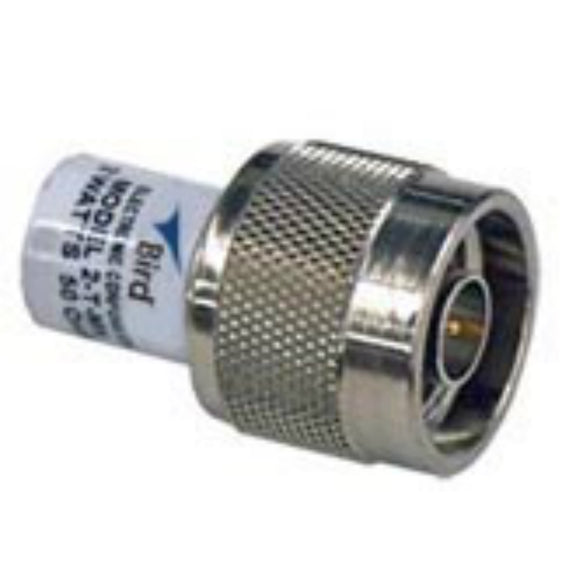

Termination load - rated for 2W from 0 to 4 GHz frequencies.
| Termination | |
|---|---|
| Connector Type | N-Male |
| Dimensions | 1.26" (L) x 0.48" (Dia) |
| Termination Spec Info 1 | |
| Frequency vs. VSWR | DC - 1 GHz @ 1.10:1 max ~ 1 GHz - 6 GHz @ 1.25:1 max (N-Type), 1 GHz - 4 GHz @ 1.25:1 max (BNC & TNC) |
| Warranty | 1 Year |
| Termination Spec Info 2 | |
| Impedance | 50 Ohm |
| Weight | 0.12 lbs |
Bird's Calibrated Mismatch Loads are recognized for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields.
