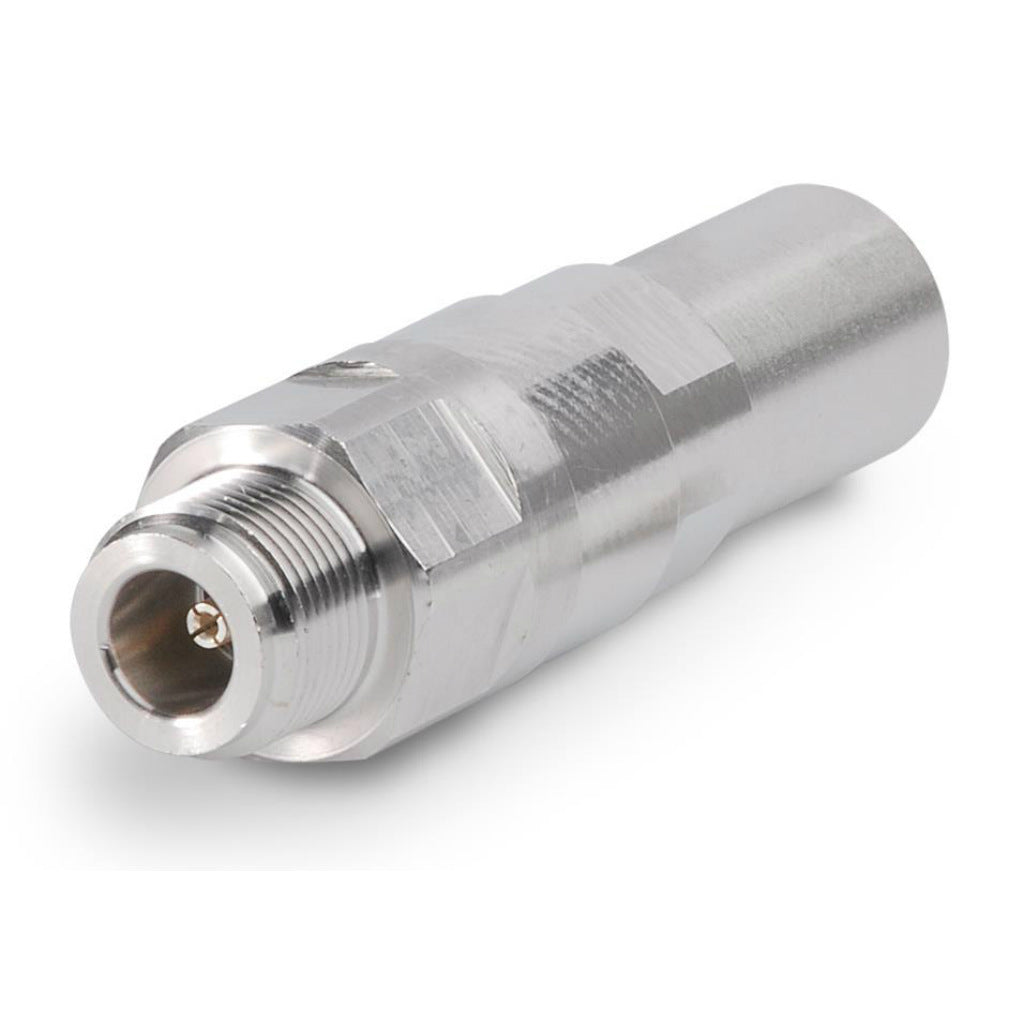

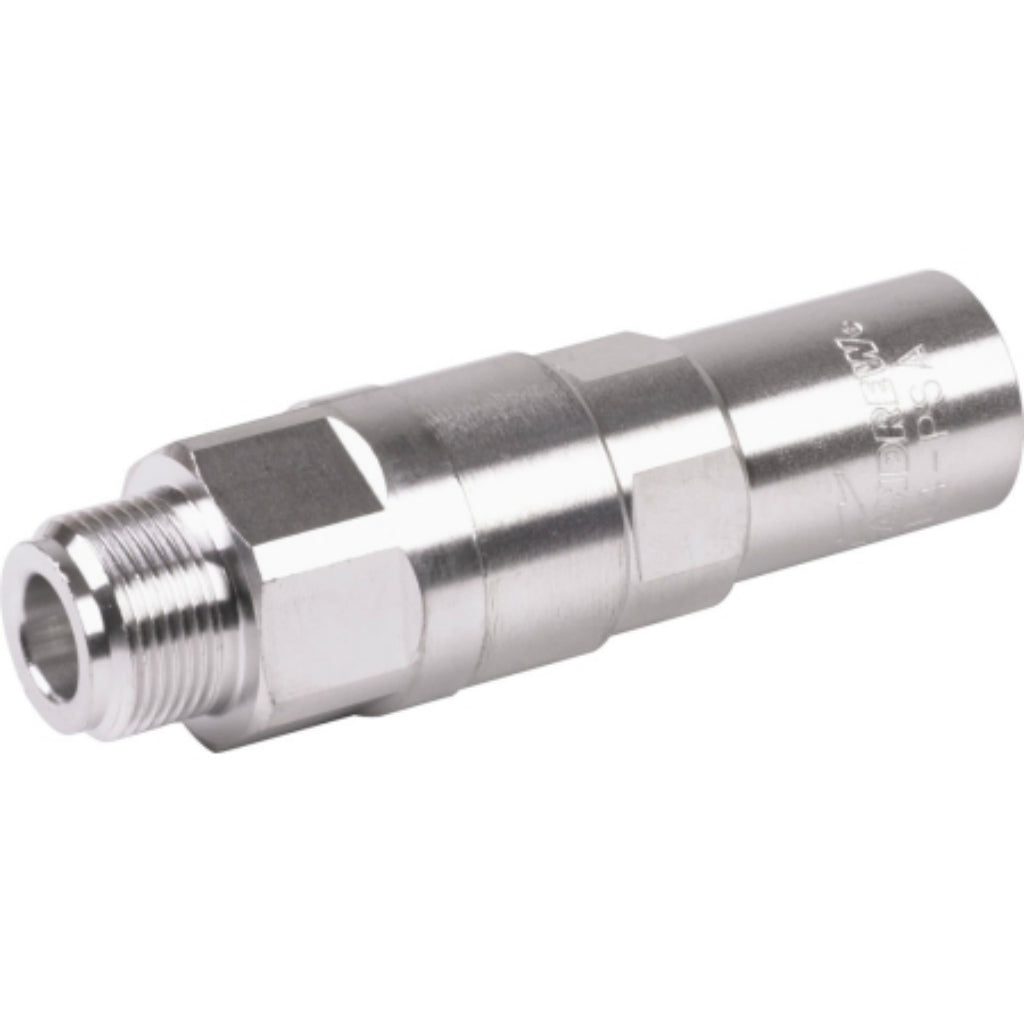

Ease connector attachment issues and ensure excellent RF transmission line performance with these CommScope N-Female Positive-Stop connector for CommScope's 1/2" LDF4-50A, HL4RPV-50, and AL4RPV-50 cables.
It is a straight connector with 50 ohm impedance. It has a ring flare attachment with self captivated silver plated center pin and a tri-metal plated body. It operates on frequency bands from 0 – 8800 MHz.
These connectors are for HELIAX corrugated coaxial cables. They require no special tools or torque wrenches, eliminating both guess work and time consuming measurements.
Using standard wrenches and in less than one rotation, they give the installer a clear visual and mechanical verification of a correct fit, sealing out water and sealing in excellent electrical performance.

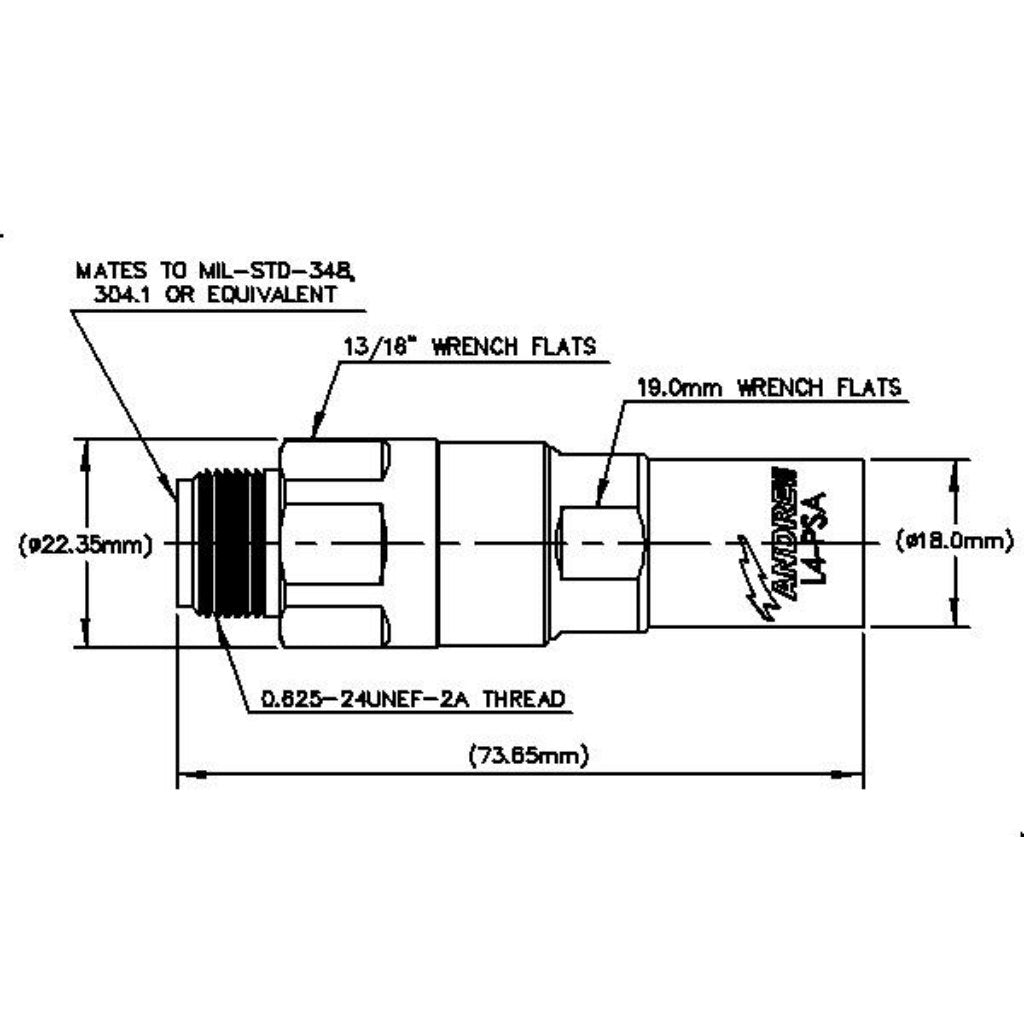

CommScope Positive-Stop Connectors are waterproof, even unmated. It is 2.9" long and 0.88" in diameter.
Benefits
The easy verification eliminates the need to control torque levels and provides consistent attachment integrity and electrical performance.
- No special tools required
- Full tightens in less than one rotation
- Visual and mechanical fit verification
- Integrated sealing mechanism
- Faster, easier installation
- Excellent electrical performance
