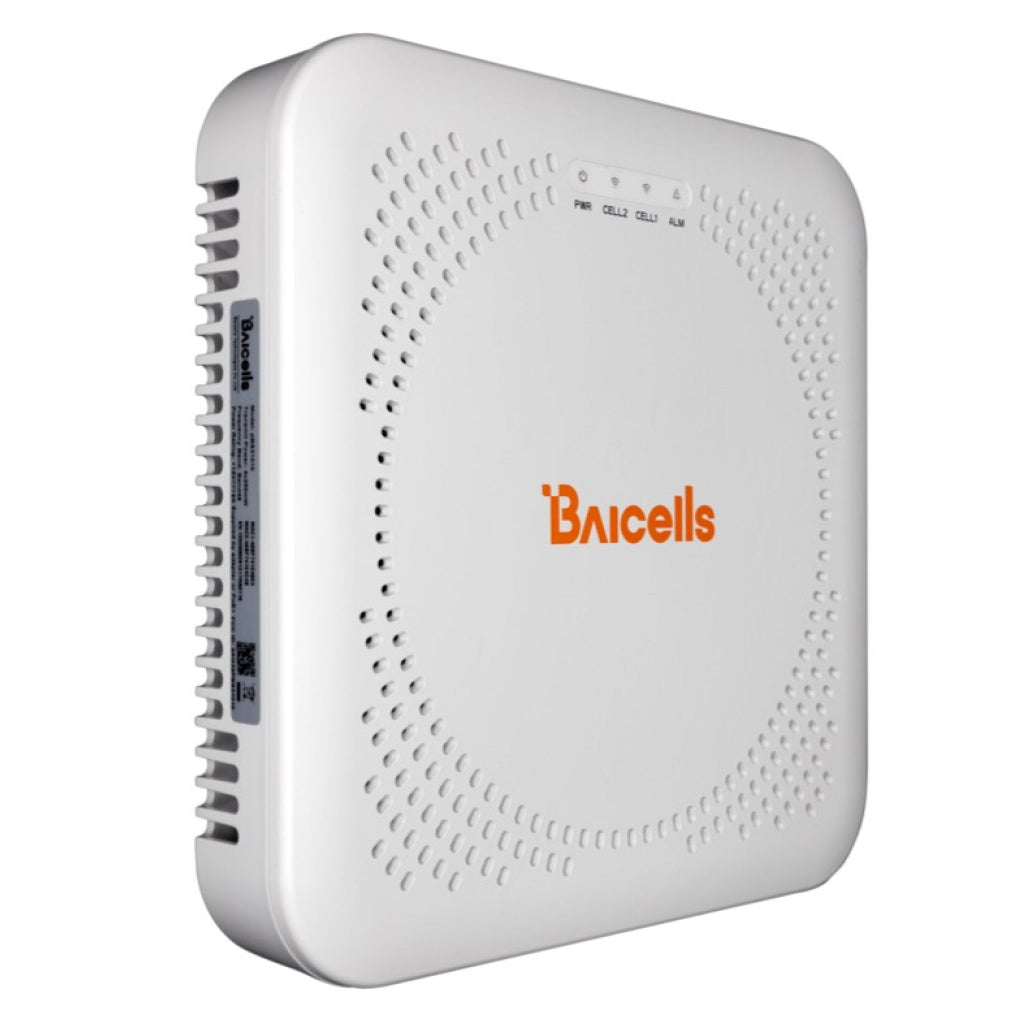

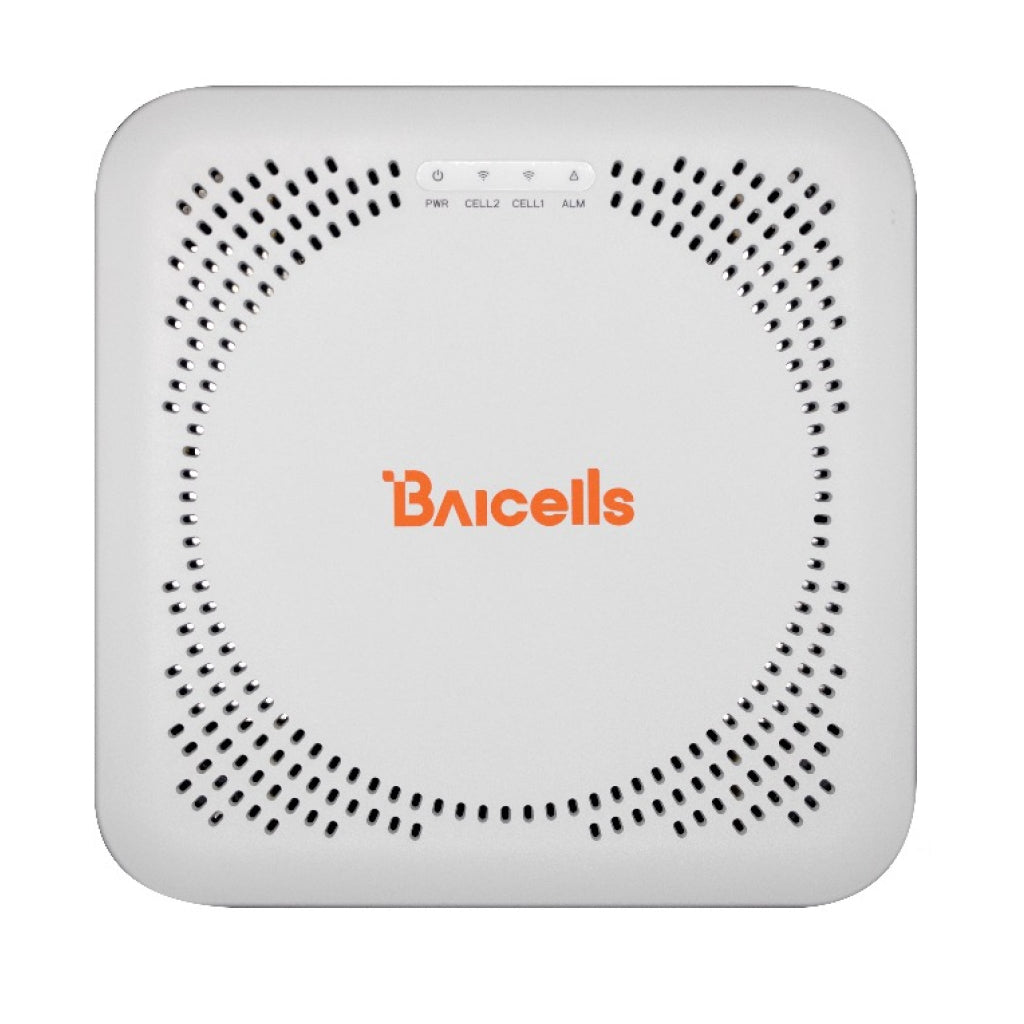

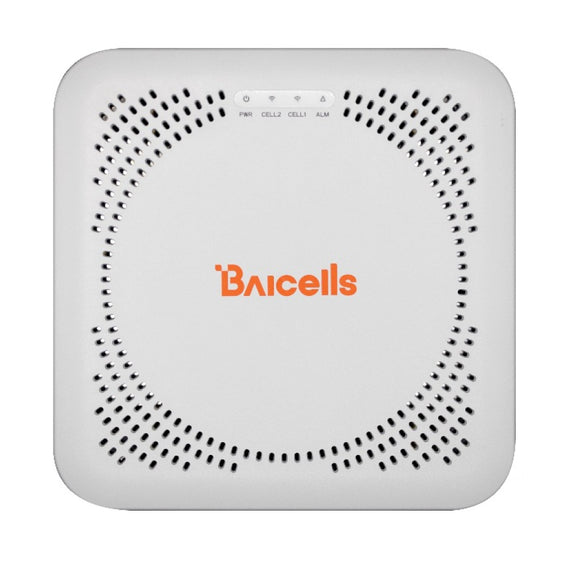

The Baicells Neutrino430 series includes two compact LTE TDD base stations designed for CBRS Band 48: the Neutrino430i, optimized for indoor deployments, and the Neutrino430e, a ruggedized outdoor variant with external antennas. Both models support Carrier Aggregation (CA) and Dual Carrier (DC) operation across up to 2x20 MHz of bandwidth, enabling downlink speeds up to 290 Mbps.

Each carrier supports 128 concurrent users (256 total in DC mode). The Neutrino430i includes integrated 3 dBi omni antennas and built-in GPS, while the Neutrino430e uses N-type connectors for external 4-port or 2x2-port antenna configurations. Both units support Baicells’ embedded HaloB EPC or external core networks and can be installed quickly for indoor or outdoor coverage.

Deployment Requirements

To deploy the Neutrino430i or Neutrino430e, you’ll need:

• SAS registration: Required for CBRS Band 48 operation. Proxy and direct SAS support are included.
• IP backhaul: IPsec-encrypted backhaul supported via RJ45 Ethernet port. The 430i includes an additional SFP port.
• EPC or core network: Compatible with Baicells HaloB EPC or third-party EPCs.
• Power:
  • Neutrino430i: Supports PoE+ (802.3at) or 12V DC.
  • Neutrino430e: Requires PoE++ (802.3bt).
• Mounting:
  • Neutrino430i: Ceiling or wall mount.
  • Neutrino430e: Pole or wall mounting with outdoor-rated power and surge protection.
• GPS synchronization:
  • 430i: External GPS antenna (SMA port).
  • 430e: Internal GPS with built-in support.
• Antennas:
  • 430i: 3 dBi internal omni antennas.
  • 430e: Requires external 4-port or 2x2-port directional antennas (not included).
• Environmental considerations:
  • Neutrino430i: For indoor use (–5°C to 45°C, IP20)
  • Neutrino430e: IP65-rated for outdoor use (–40°C to 55°C)

Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.

Key Features

• Supports LTE Band 48 (3550–3700 MHz) with 5, 10, 15, or 20 MHz channels per carrier.
• Dual-carrier and carrier aggregation support with total throughput up to 290 Mbps (DL).
• 4x250mW transmit power per model (configurable up to +30 dBm EIRP), with 13 dBi antenna gain on 430e and 3 dBi on 430i.
• Up to 128 concurrent users per carrier, with support for DC (128+128) and CA operation.
• Supports GPS and 1588v2 synchronization. 430i uses external GPS, 430e includes built-in GPS.
• PoE-powered (PoE+ for 430i, PoE++ for 430e) for simplified deployments.
• HaloB embedded EPC option included with support for voice (VoLTE, future release) and transparent bridge mode.
• Web UI, TR-069, and SNMPv2 management. Integrated SON features including ANR and PCI conflict detection.

• Neutrino430i or Neutrino430e (Band 48 variant)
• Mounting hardware (ceiling/wall for 430i; pole/wall for 430e)
• RJ45 Ethernet backhaul port (plus SFP on 430i)
• SMA GPS connector (430i) or integrated GPS (430e)
• N-Type external antenna connectors (430e only)

We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
