Baicells Nova246: 3.5 GHz 2×20W Band 48 Dual-Carrier Outdoor Base Station

by: Baicells

Outdoor LTE TDD base station with dual-carrier support and 2x20W output power for private network deployments in CBRS Band 48.

by: Baicells

Baicells Nova246: 3.5 GHz 2×20W Band 48 Dual-Carrier Outdoor Base Station

Outdoor LTE TDD base station with dual-carrier support and 2x20W output power for private network deployments in CBRS Band 48.

The manufacturer of this product does not allow it to be sold online.

Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.

Contact us to purchase
Free, fast shipping
90-Day Money-Back Guarantee
Warranty
Unlimited free expert support
Carbon neutral deliveries

Description

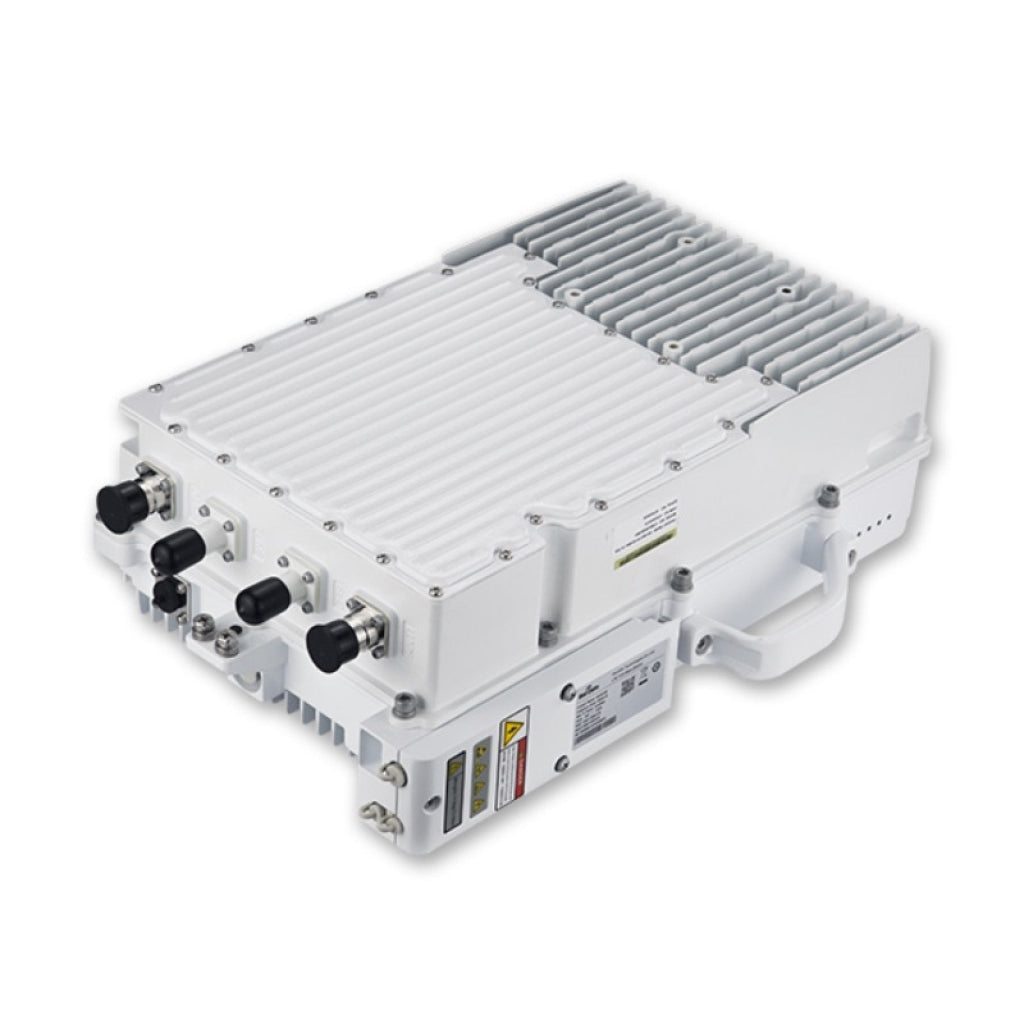

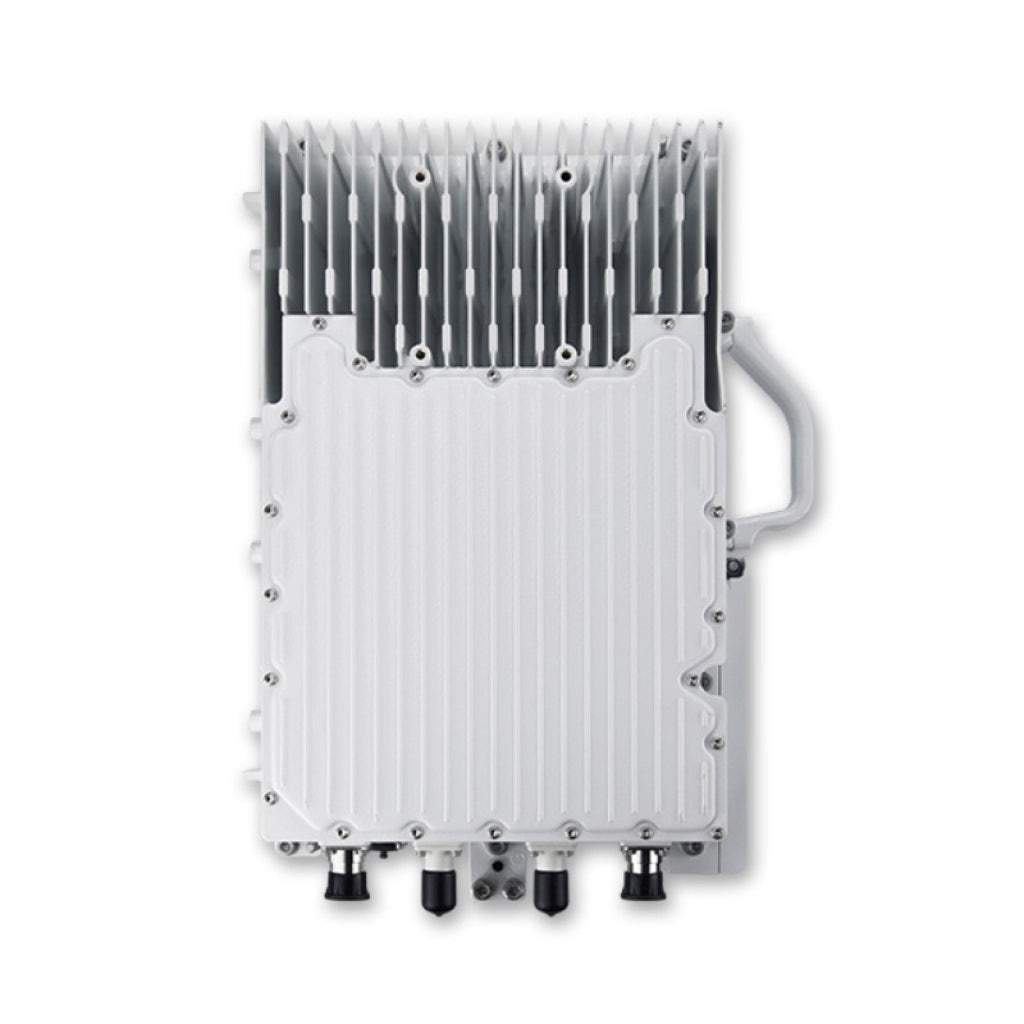

The Baicells Nova246 is a high-power LTE TDD base station designed for outdoor deployments in the 3.5 GHz CBRS Band 48. With support for dual carriers and 2x20W output power, the Nova246 enables large-scale private network coverage with fewer radios per site. Each carrier operates as an independent cell with 2x2 MIMO and up to 96 concurrent users, making it well suited for industrial, campus, and rural broadband environments.

The Nova246 supports channel bandwidths of 5, 10, 15, or 20 MHz and can be operated in single- or dual-carrier mode. It features flexible backhaul with both Ethernet and fiber ports, IP66 weatherproofing, and GPS-based synchronization. It can operate with external EPCs or Baicells’ embedded HaloB core. This model supports Band 48 (3550–3700 MHz).

Deployment Requirements

To deploy the Baicells Nova246, you’ll need:

  • SAS registration: Required for CBRS Band 48 use.
  • IP backhaul: Public or private IP backhaul via Ethernet or SFP fiber. IPsec support is built in.
  • EPC or core network: Compatible with external EPCs or embedded HaloB EPC for standalone operation.
  • Power and mounting: Nominal -48V DC input with support for AC adapters. Includes pole or wall mounting options.
  • GPS antenna for synchronization: External GPS antenna required (N-Type connector).
  • Antennas: External high-gain directional or sector antennas required. Two antenna ports with N-Type connectors.
  • Environmental considerations: IP66-rated enclosure. Operates from -40°C to 55°C. Max power draw 180W.

Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.

Key Features

  • Supports LTE Band 48 (CBRS 3550–3700 MHz) with 2×20 MHz dual-carrier TDD operation.
  • Delivers 2x20W (43 dBm total) output power with 2x2 MIMO per carrier. External antennas required.
  • Supports 96 active users per carrier (192 total in DC mode). Ideal for high-density fixed or mobile applications.
  • Integrated GPS timing synchronization and support for IEEE 1588v2 PTP.
  • Includes both RJ45 and SFP backhaul ports with IPsec encryption and VLAN support.
  • Peak throughput up to 220 Mbps downlink and 28 Mbps uplink with 2x20 MHz.
  • Compatible with Baicells HaloB EPC or external core networks. TR-069 and Web UI management.
  • Rugged IP66 enclosure with support for outdoor pole or wall mounting.

Kit Contents

  • Baicells Nova246 (Band 48 variant)
  • Mounting bracket (pre-installed)
  • RJ45 Ethernet port and SFP fiber interface
  • N-Type connectors for GPS and antenna ports

We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].

Warranty

Baicells warrants the product to be free from physical defects in material and workmanship for a period of 1 year; with an extended warranty available.

For more information please contact Baicells here.

Specifications, Guides, and Downloads

SKU
  • sBS81040
CA Prop 65 Warning
Read full warning Collapse warning
This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
