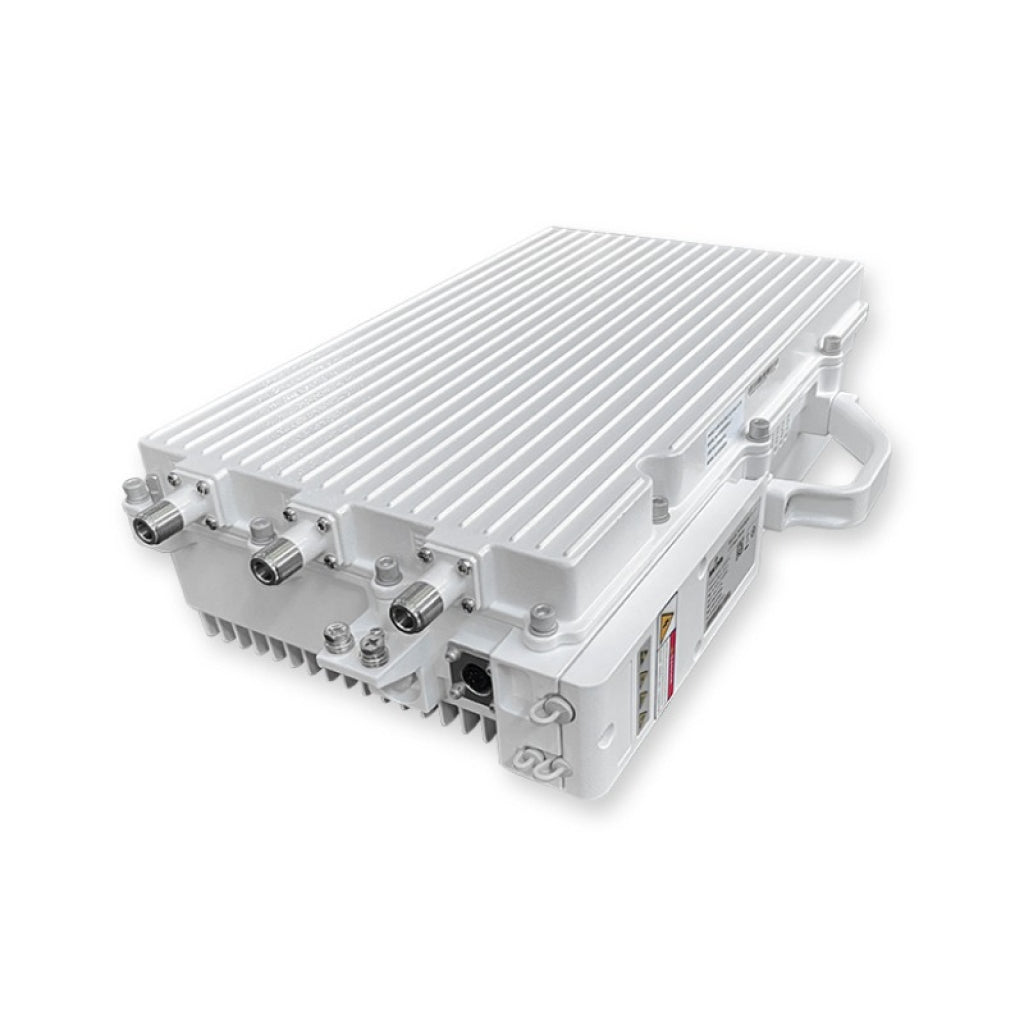

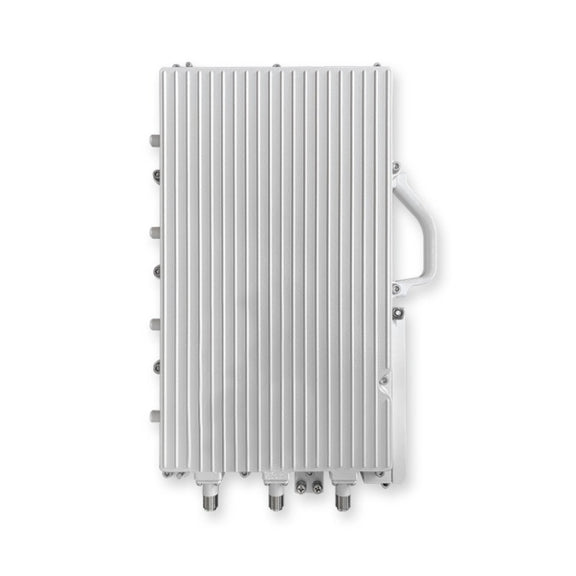

Baicells Nova249: Multi-Band 2×40W Outdoor LTE FDD Base Station
by: Baicells
by: Baicells
Baicells Nova249: Multi-Band 2×40W Outdoor LTE FDD Base Station
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Baicells products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Baicells Nova249 is a high-power LTE FDD base station designed for outdoor deployments requiring broad coverage and high capacity. Operating in FDD mode with 2x2 MIMO and 40W output per channel, it is ideal for private networks in rural broadband, utility, and campus environments. The Nova249 supports up to 1024 concurrent users and provides strong performance even in non-line-of-sight conditions.
This unit is compatible with multiple FDD bands, including 700 MHz, 850 MHz, and 2.6 GHz, and supports up to 20 MHz bandwidth. It features a rugged, IP66-rated enclosure and dual Ethernet/fiber backhaul. The Nova249 is compatible with standard LTE EPCs and includes support for embedded HaloB core functionality. This model supports Band 1/3/5/7/8/20/28.
Deployment Requirements
To deploy the Baicells Nova249, you’ll need:
- IP backhaul: Supported over Ethernet or fiber via RJ45 and SFP ports. Public or private backhaul protected via IPsec.
- EPC or core network: Compatible with external EPCs or Baicells’ embedded HaloB EPC for standalone deployments.
- Power and mounting: Nominal -48VDC. Requires pole or wall mounting. Optional AC adapter and GPS surge protection recommended.
- External antennas: Required. N-Type connectors support directional or omnidirectional high-gain antennas.
- GPS antenna for synchronization: Required. External GPS antenna must be connected via N-Type port.
- Environmental considerations: IP66-rated enclosure. Operates from -40°C to 55°C with max power consumption under 300W.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports LTE FDD operation on Bands 1, 3, 5, 7, 8, 20, and 28 with up to 20 MHz bandwidth per band.
- Delivers 2x40W (46 dBm) output power with 2x2 MIMO. External antennas required.
- Supports 1024 active RRC-connected users per eNB, ideal for high-density voice and data coverage.
- Dual Ethernet and SFP interfaces with IPsec, TR-069, and web-based management.
- Peak throughput of 195 Mbps downlink and 71 Mbps uplink using 20 MHz channels.
- Integrated GPS synchronization and RET support for external antennas.
- VoLTE, CSFB, and inter-RAT mobility support for GSM, UTRAN, and 5G NSA/SA.
- IP66-rated enclosure with lightning protection and ruggedized design for harsh outdoor environments.
Kit Contents
- Baicells Nova249 (multi-band variant)
- Pole/wall mounting hardware
- SFP and RJ45 backhaul ports
- N-Type connectors for antenna and GPS
- AC power adapter (optional, not included)
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
