Baicells Nova430e: Outdoor Dual-Carrier LTE TDD Base Station for CBRS Band 48
by: Baicells
by: Baicells
Baicells Nova430e: Outdoor Dual-Carrier LTE TDD Base Station for CBRS Band 48
This product is designated an Industrial-class booster by the FCC and may only be sold as part of a custom-designed solution.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Baicells products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

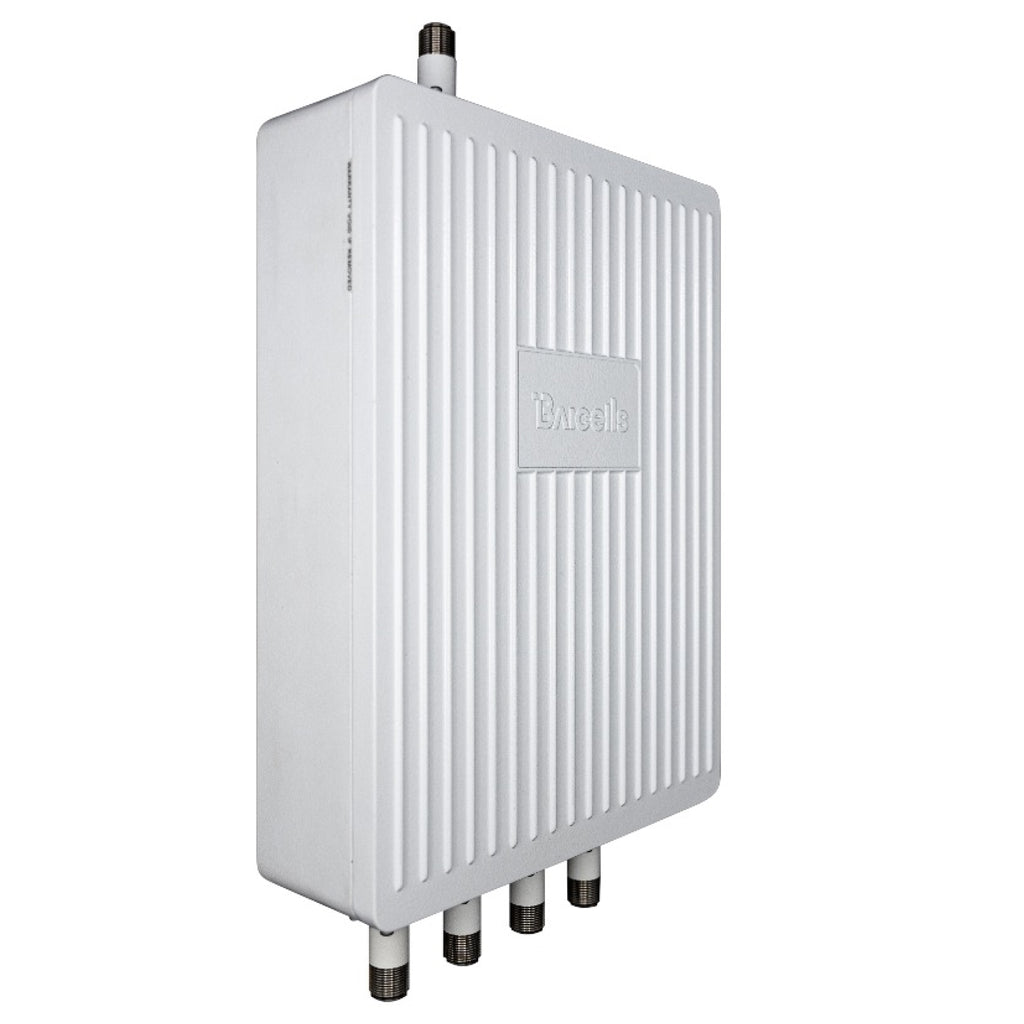

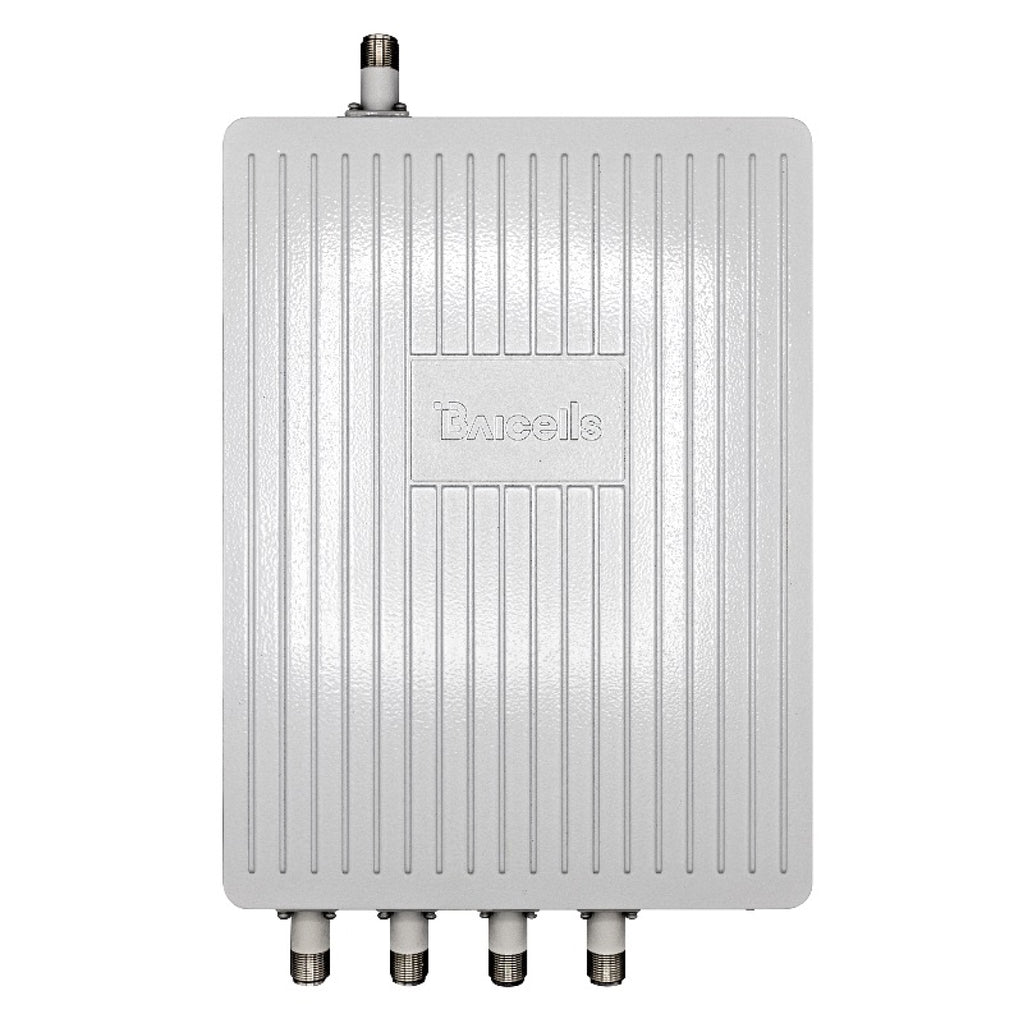

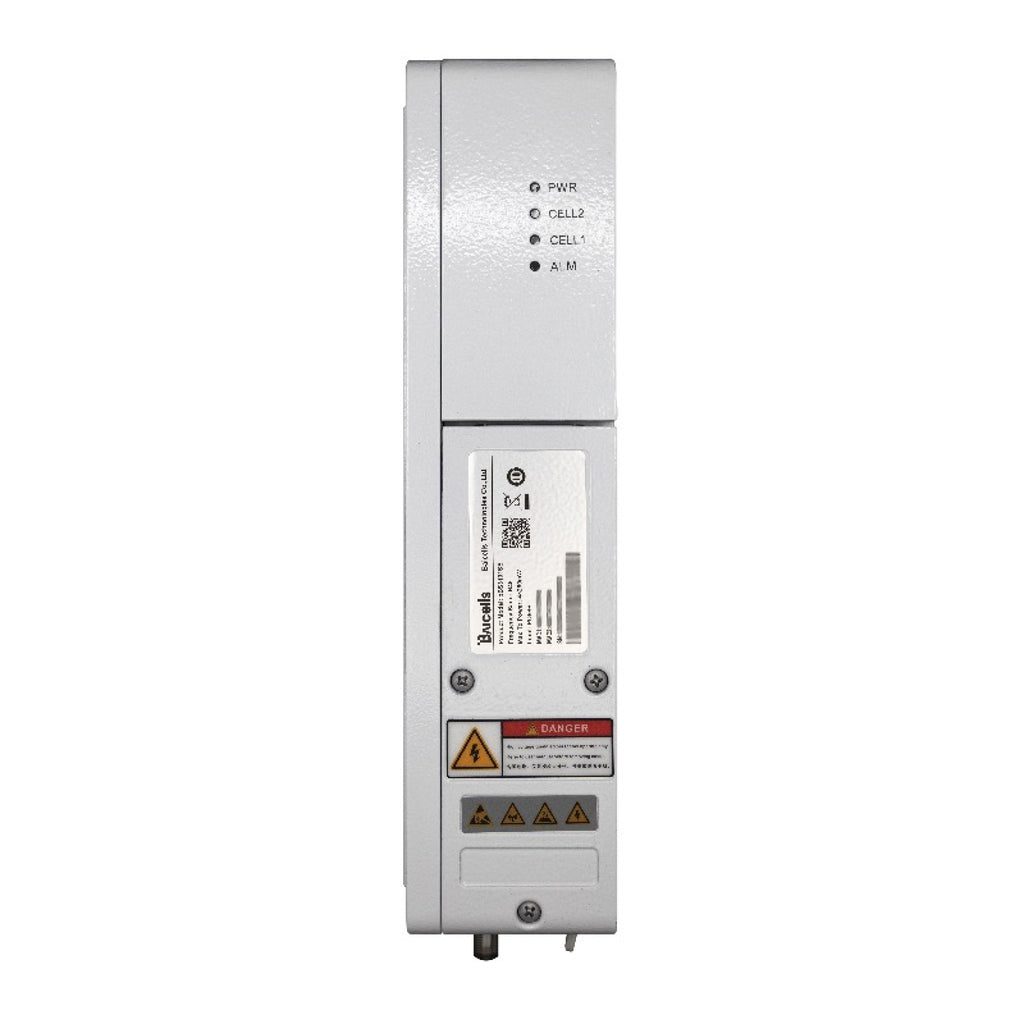

The Nova430e is a two-carrier LTE TDD outdoor eNodeB that supports external antennas, providing greater flexibility for RF planning and installation. It operates in either Carrier Aggregation (CA) mode for increased throughput or Dual Carrier (DC) mode for split-sector applications.
In CA mode, two component carriers are aggregated to deliver up to 40 MHz bandwidth and improved data rates for compatible UEs. In DC mode, the unit operates as two independent cells, each supporting up to 96 concurrent users. The external antenna architecture allows for directional control and optimization of coverage based on the deployment environment.
The Nova430e includes Baicells’ HaloB embedded EPC for standalone LTE operation, reducing infrastructure requirements for private network rollouts. It supports CBRS and other TDD bands and is compatible with Baicells CloudCore or third-party EPCs.
Deployment Requirements
To deploy the Nova430e, you’ll need:
- Access to licensed TDD spectrum (e.g., Band 48 for CBRS, 42/43)
- External antennas (1x 4-port or 2x 2-port configurations)
- IP backhaul (DHCP/static, with IPSec as needed)
- Mounting and power (compatible with Baicells UPS solutions)
- Remote or local management access and optional HaloB setup
Our team can assist with spectrum considerations, antenna selection, core integration, and performance tuning.
Key Features
- External antenna support (1x 4-port or 2x 2-port options)
- Dual Carrier (DC) or Carrier Aggregation (CA) support
- Up to 40 MHz total channel bandwidth
- Peak data rates: 220 Mbps DL / 56 Mbps UL
- 96+96 concurrent users in DC mode
- LTE TDD Bands 48 (CBRS), 42, 43 (custom variants available)
- Embedded HaloB EPC included
- SON-enabled for simplified setup
- TR-069, web UI, and HTTPS-based management
- Low power consumption; compatible with Baicells UPS
- Outdoor-rated enclosure for harsh environments
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| FCC notice |
Read full notice Collapse notice
This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED
INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device.
|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a Private Network?
We don’t just ship hardware – we work with you to design the right private network for your site and use case. That might mean helping plan your RF layout, choosing the right components, or handling the full deployment and integration.
Whether you need support with part of the process or want a turnkey buildout, we’re here to help.
Whether you need a pre-configured kit or a fully custom network, we’re ready to help.
- Ask questions and get technical guidance
- Explore the right options for your deployment
- Get a free design and estimate tailored to your project
