Baicells Nova430i: Outdoor Dual-Carrier LTE TDD Base Station for CBRS Bands 48, 42 and 43
by: Baicells
by: Baicells
Baicells Nova430i: Outdoor Dual-Carrier LTE TDD Base Station for CBRS Bands 48, 42 and 43
This product is designated an Industrial-class booster by the FCC and may only be sold as part of a custom-designed solution.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Baicells products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description

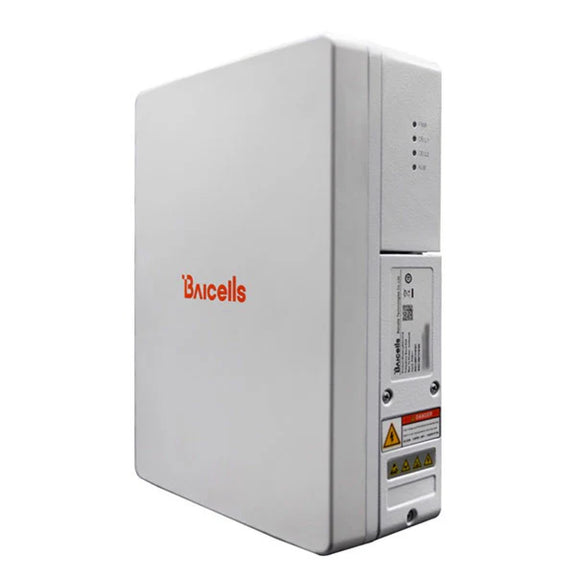

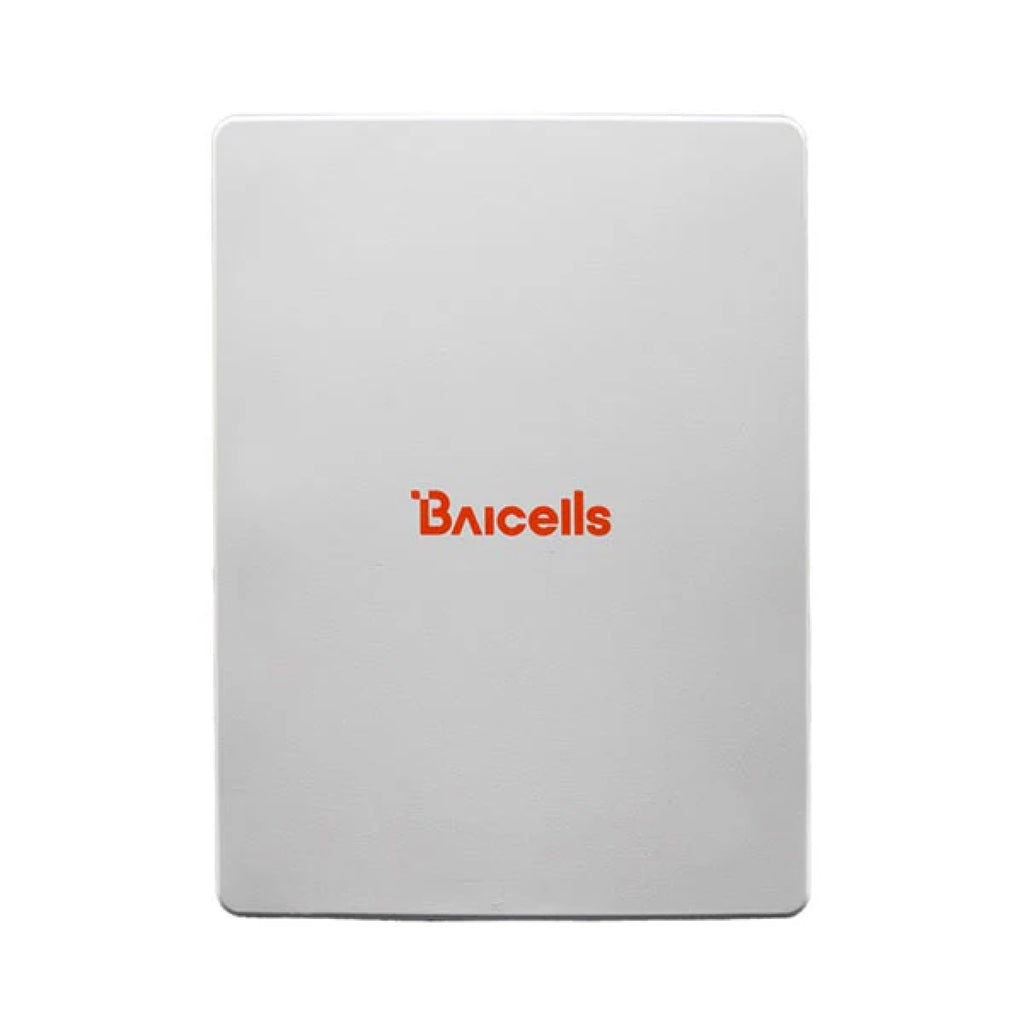

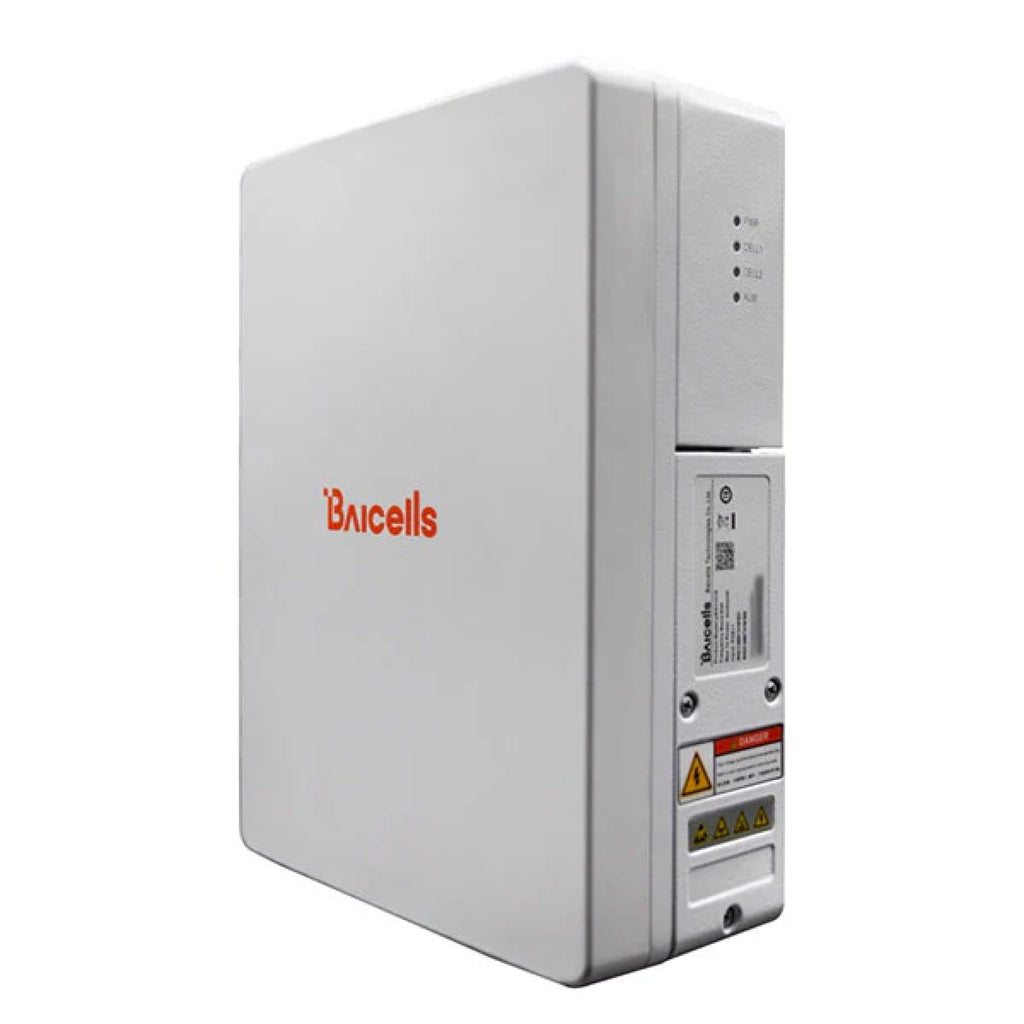

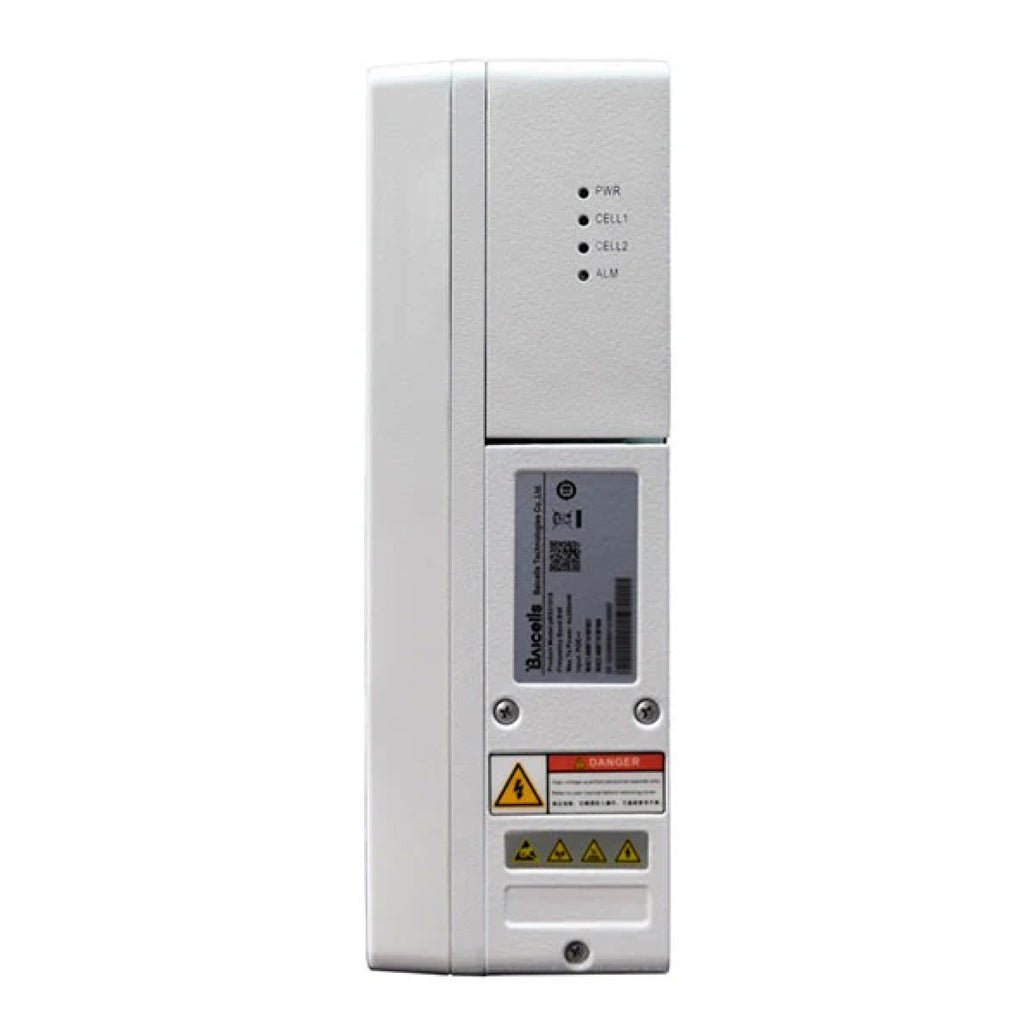

The Nova430i is a two-carrier LTE TDD outdoor base station (eNodeB) with integrated high-gain antennas, designed for rapid deployment in private or public networks. Operating in either Carrier Aggregation (CA) or Dual Carrier (DC) mode, it supports up to 40 MHz of channel bandwidth and 192 concurrent users across two carriers.
In CA mode, the Nova430i combines two component carriers to increase downlink and uplink capacity for Cat6/7 or higher UE. In DC mode, each carrier functions as an independent sector, enabling simplified split-sector deployments. The integrated antennas reduce site complexity and installation time.
The Nova430i includes Baicells’ embedded HaloB EPC, enabling standalone LTE operation without a centralized core. Its compact, outdoor-rated design makes it well-suited for enterprise campuses, municipalities, industrial sites, and rural coverage zones.
Deployment Requirements
To deploy the Nova430i, you’ll need:
- Access to licensed TDD spectrum (Band 48 for CBRS or partial 42/43)
- IP backhaul (static or DHCP, public or private with IPSec)
- Pole or wall mount installation and site power (UPS optional)
- Local or remote management interface access
- Optional SIM provisioning and HaloB configuration
Our team can assist with spectrum considerations, antenna selection, core integration, and performance tuning.
Key Features
- Built-in high-gain integrated LTE antennas (4 ports)
- Dual Carrier (DC) or Carrier Aggregation (CA) mode operation
- Up to 40 MHz total bandwidth (2x20 MHz)
- Peak data rates: 220 Mbps DL / 28 Mbps UL
- 96+96 concurrent users in DC mode
- TDD Bands 48 (CBRS), 42, and 43 (custom variants available)
- Embedded EPC (HaloB) included in base software
- Self-Organizing Network (SON) support
- TR-069, HTTPS, and web-based management
- Plug-and-play design with low power consumption
- IP-based backhaul with IPSec support
- IP-rated enclosure for outdoor use
Warranty
Specifications, Guides, and Downloads
| SKU |
|
|---|---|
| FCC notice |
Read full notice Collapse notice
This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED
INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device.
|
| CA Prop 65 Warning |
Read full warning Collapse warning |
Deploying as Part of a Private Network?
We don’t just ship hardware – we work with you to design the right private network for your site and use case. That might mean helping plan your RF layout, choosing the right components, or handling the full deployment and integration.
Whether you need support with part of the process or want a turnkey buildout, we’re here to help.
Whether you need a pre-configured kit or a fully custom network, we’re ready to help.
- Ask questions and get technical guidance
- Explore the right options for your deployment
- Get a free design and estimate tailored to your project
