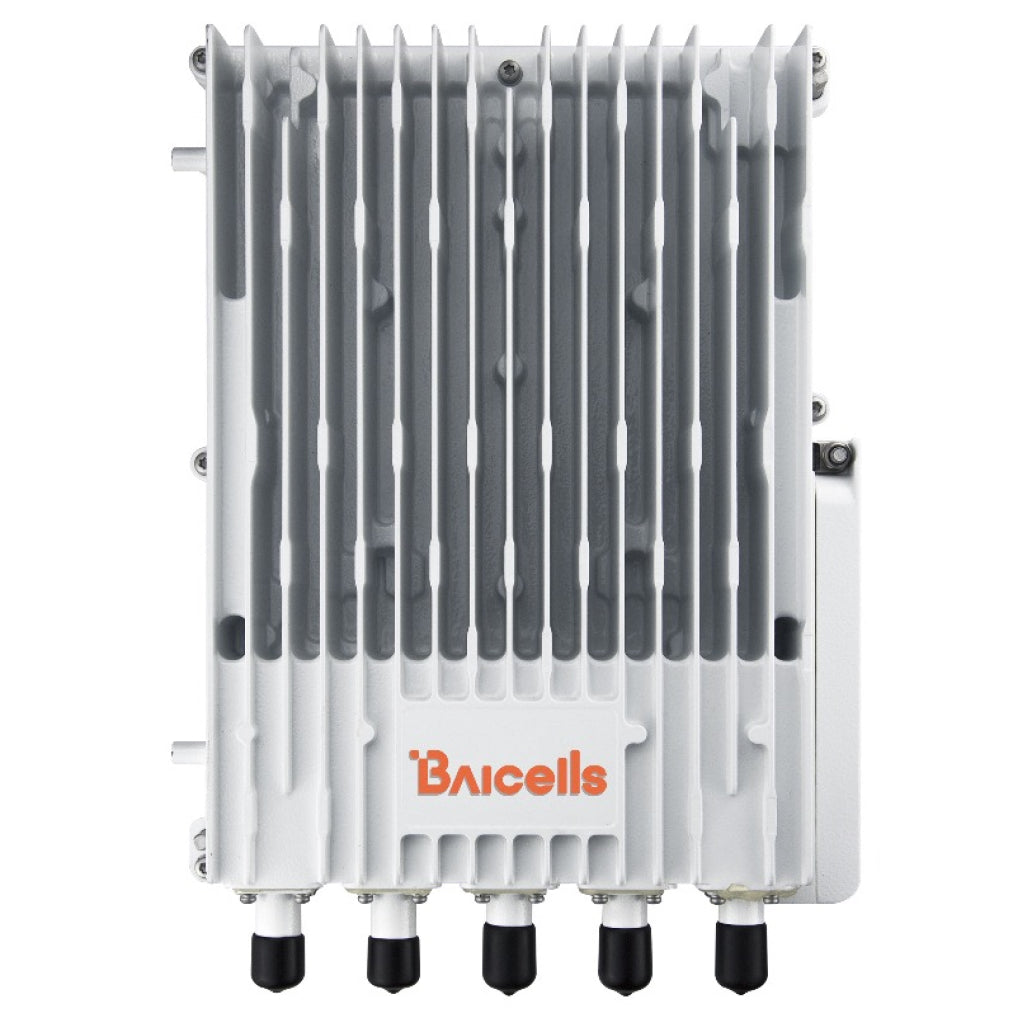

Baicells Nova436Q: Outdoor 4x1W Dual-Carrier LTE TDD Base Station for Bands 42 and 48
by: Baicells
by: Baicells
Baicells Nova436Q: Outdoor 4x1W Dual-Carrier LTE TDD Base Station for Bands 42 and 48
The manufacturer of this product does not allow it to be sold online.
Please contact us by calling 800-761-3041 or using this form if you're interested in purchasing this unit.
Contact us to purchase
Free, fast shipping
Your products will generally ship within 1 to 2 business days, and shipping is free for all orders over $99 (within the continguous US states).
90-Day Money-Back Guarantee
We offer a 90-day Money-Back Guarantee on all our products (except a handful of that are custom-built per order - there'll be a note anytime that's the case). That means if you're unhappy with your purchase in any way, you can simply initiate a return online and send it back to us for a complete refund.
Our guarantee is just that: we won't mess you around, we'll just make it happen.
Warranty
Baicells products come with a manufacturer's warranty against defects in workmanship and materials.
Contact us at 1-800-761-3041 or email us at [email protected] if you have any questions about the manufacturer's warranty.
Unlimited free expert support
Buying from Waveform gets you free, unlimited help from our team of signal experts.
Our signal engineers have been helping customers improve their signal for over 10 years. No matter what your question, we're here to help. We don't just sell you a product - we sell you a solution, and we stand by each and every product we offer.
Carbon neutral deliveries
Offsetting All Carbon From Product Deliveries
With every order, we donate a part of our profits to some of the most promising climate solutions on Earth. We also fund cutting-edge carbon removal projects that have the potential to reverse climate change.
Description
The Baicells Nova436Q is a high-power outdoor LTE base station designed for dual-carrier operation across Bands 42 (3400–3600 MHz) and 48 (3550–3700 MHz). With 4x1W transmit power and support for both Carrier Aggregation (CA) and Dual Carrier (DC) modes, the Nova436Q can aggregate up to 40 MHz of spectrum and deliver up to 290 Mbps downlink throughput. It supports 128 users per carrier (256 total in DC mode) and simplifies deployment in split-sector applications.

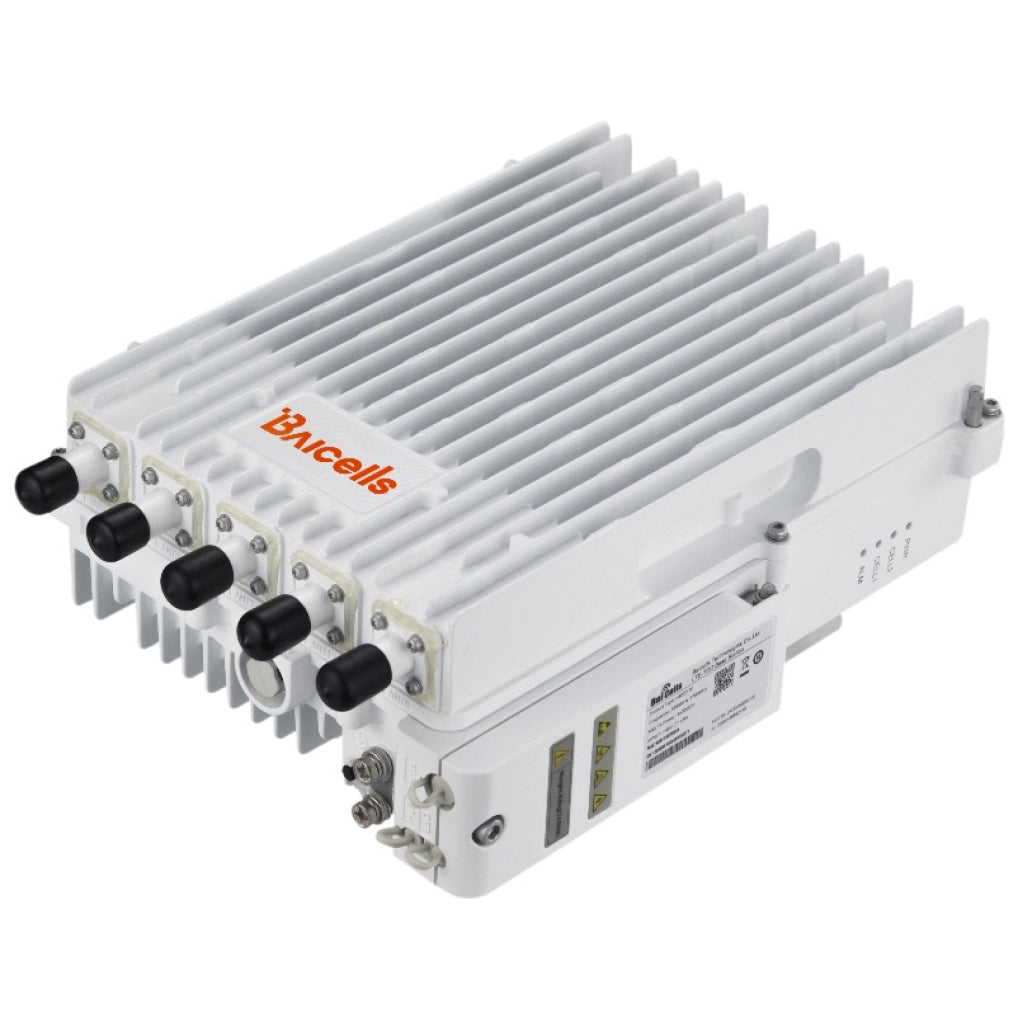

The Nova436Q features external N-type antenna connectors compatible with two 2-port or one 4-port directional antennas. Built for rugged outdoor environments, it includes lightning protection, GPS and 1588v2 synchronization, and PoE/AC power options. It supports Baicells' embedded HaloB EPC or can integrate with an external core.
Deployment Requirements
- To deploy the Baicells Nova436Q, you’ll need:
- SAS registration: Required for Band 48 use. Proxy and direct SAS support included.
- IP backhaul: IPsec-secured connection via Ethernet or SFP fiber port. Public or private IP supported.
- EPC or core network: Compatible with external EPCs or embedded HaloB EPC.
- Power and mounting: Accepts DC power (–48V nominal) or AC adapter. Includes lightning protection. Pole or wall mount.
- Antennas: External high-gain antennas required. Supports either one 4-port or two 2-port antennas via N-Type connectors.
- GPS synchronization: External GPS antenna required (N-Type connector). Supports IEEE 1588v2 synchronization.
- Environmental considerations: IP66-rated enclosure. Operating range from –40°C to 55°C. Max power draw 100W.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports LTE TDD Bands 42 and 48 with 5, 10, 15, or 20 MHz bandwidth per carrier.
- Delivers 4x1W (36 dBm combined) output power with 2x2 MIMO. External antennas required.
- Supports dual-carrier (DC) and carrier aggregation (CA) operation. Up to 128+128 users supported in DC mode.
- Peak throughput up to 290 Mbps downlink and 70 Mbps uplink with 2x20 MHz in CA mode.
- Supports GPS and IEEE 1588v2 timing synchronization. GPS antenna required.
- Built-in support for HaloB embedded EPC or integration with third-party EPCs.
- Lightning-protected IP66-rated enclosure for rugged outdoor use. Pole or wall mount.
- Includes TR-069, SNMP, and Web UI management. Self-organizing features included.
Kit Contents
- Baicells Nova436Q (Band 42/48 variant)
- Pole/wall mounting bracket
- RJ45 and SFP backhaul ports
- N-Type connectors for antennas and GPS
- AC power adapter (optional)
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
