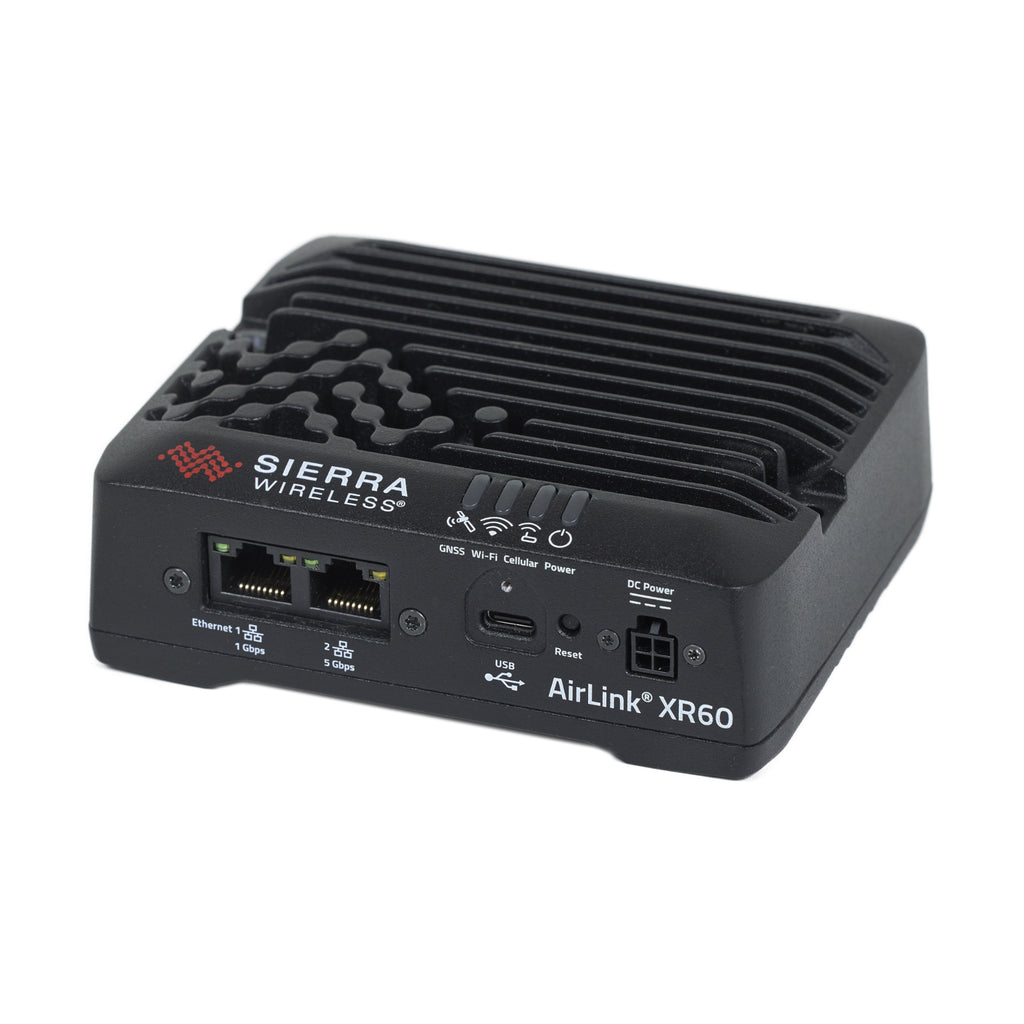

The AirLink XR60 is a compact, rugged 5G router designed for fixed and mobile deployments in harsh or space-constrained environments. Supporting CBRS Band 48 and a wide range of Sub-6 GHz LTE and 5G bands, the XR60 is ideal for digital signage, surveillance systems, smart city sensors, manufacturing floors, fleet vehicles, and fixed wireless sites.

Despite its small footprint, the XR60 delivers high-speed 5G, Wi-Fi 6, and robust edge processing capabilities, ensuring reliable connectivity for mission-critical applications. Its durable IP64-rated aluminum housing and MIL-STD-810H certification make it well-suited for outdoor and industrial environments such as NEMA enclosures, utility poles, cabinets, and transit systems.

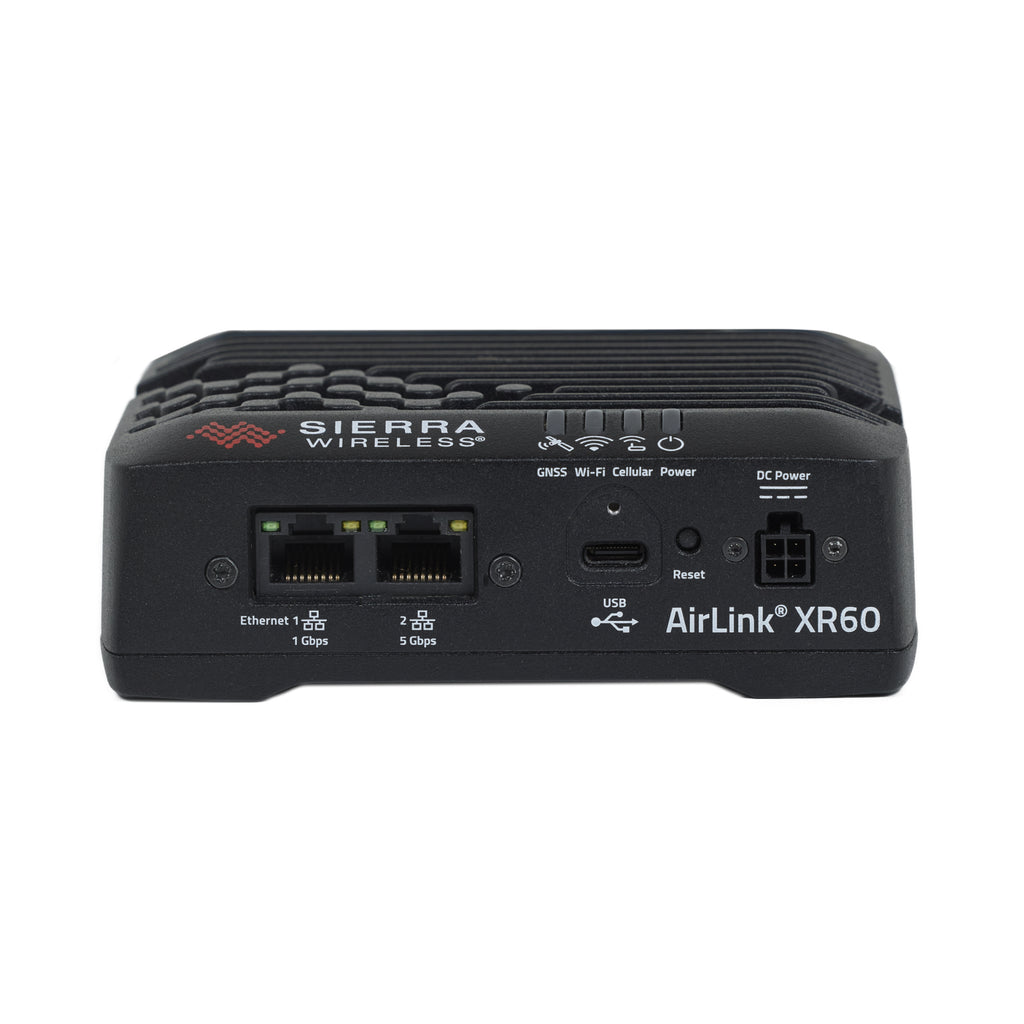

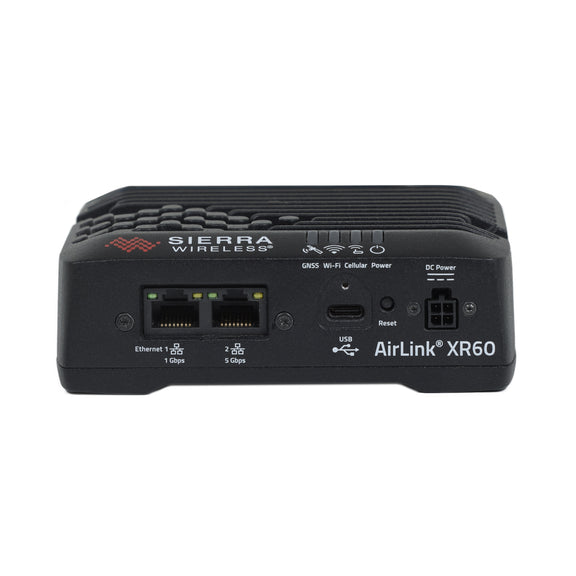

The dual-Ethernet variant features two Ethernet ports (1 Gbps + 5 Gbps), along with a quad-core ARM A53 processor, 1.2 GB of RAM, USB-C port with 45W power input and 5 Gbps LAN capability, 2x2 MU-MIMO Wi-Fi 6, and dual-band GNSS. It also includes dual nano SIM slots (4FF) for carrier failover, and is fully managed through AirLink OS and the AirLink Management Service (ALMS) for remote monitoring, Docker container support, and zero-touch provisioning.

Key Features

Connectivity & Network Support

• Supports CBRS Band 48 and Sub-6 GHz 5G/LTE bands including n48, n77, and n78.

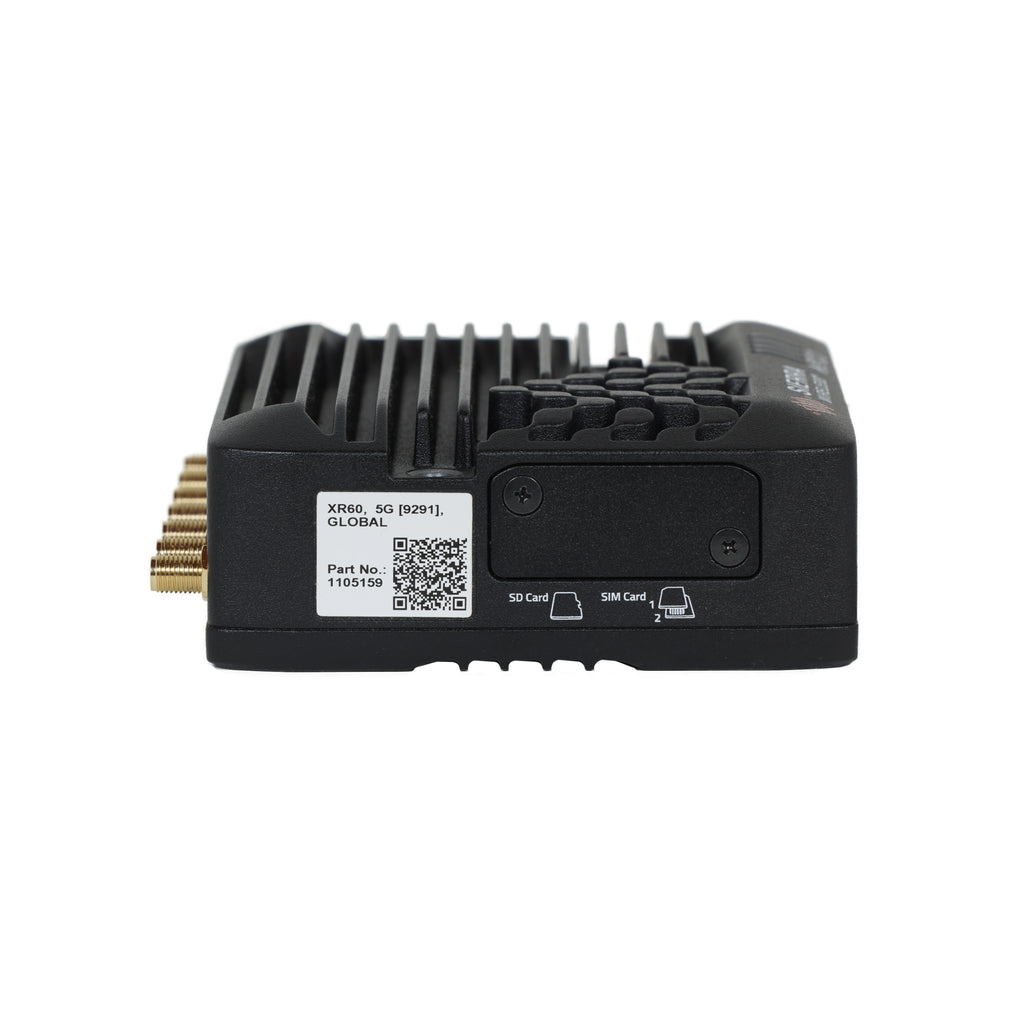

• Dual nano SIM slots with automatic failover and policy-based routing.
• Dual Ethernet ports (1 Gbps + 5 Gbps) for wired redundancy or high-throughput backhaul.
• Wi-Fi 6 (2x2 MU-MIMO): Up to 32 clients, dual-band AP and client modes, peak throughput 1.2 Gbps.
• WPA2/3 Personal, Enterprise, and Transitional security modes.

Compact Rugged Design

• The XR60 is IP64-rated and engineered for industrial and mobile applications.

• It supports operating temperatures from -40°F to 167°F (-30°C to +75°C for Wi-Fi variants), and is certified for Class 1 Div 2 hazardous locations, railway standards (EN50155), and vehicle electrical environments (ISO7637-2, E-Mark).
• The router measures at 4.6 x 3.9 x 1.5 inches and weighting approximately 1.15 lbs.
• It also includes a redundant USB-C power input to prevent downtime.


Performance & Edge Compute

• The XR60 delivers up to 2.8 Gbps downlink and 900 Mbps uplink over 5G networks, ensuring high-speed connectivity for data-intensive applications.
• It is powered by a 64-bit quad-core ARM A53 processor with 1.2 GB of RAM and 750 MB of flash storage, providing reliable performance for both routing and edge processing tasks.
• Built-in support for Docker containers (via ALMS licensing) allows organizations to run edge applications, analytics, or custom workloads directly on the device.
• The XR60 achieves firewall throughput up to 800 Mbps and supports IPsec VPN tunnels at speeds up to 175 Mbps, with the ability to manage up to 10 simultaneous VPN connections.
• With FIPS 140-2 compliance and support for both full and split tunneling, the XR60 offers enterprise-grade security suitable for sensitive deployments.

Management & Configuration

• The XR60 runs on AirLink OS, providing an intuitive, secure platform for device configuration and monitoring.
• Each unit includes a 1-year subscription to AirLink Complete, which offers access to the AirLink Management Service (ALMS), firmware and security updates, and technical support.
• Optional upgrade to AirLink Premium, which adds enhanced analytics and same-day hardware replacement coverage.
• With Hybrid Cloud capabilities, the XR60 can be managed through centralized cloud tools while still offering on-premise control for organizations with stricter IT requirements.
• The platform supports zero-touch provisioning, making it easy to deploy at scale without requiring manual setup in the field.

Connectivity Requirements

To operate the AirLink XR60 on CBRS or cellular networks, you’ll need:

SIM Card:
Two nano SIMs (4FF) provisioned for use on a CBRS network or supported public carrier such as AT&T, Verizon, T-Mobile, Southern Linc, or FirstNet Trusted. Dual-SIM failover and policy-based routing are supported. The device supports dual-SIM failover and policy-based routing, allowing it to switch seamlessly between networks to maintain continuous uptime

License or Subscription:
All XR60 units include a 1-year AirLink Complete subscription. Continued access to ALMS management, firmware updates, and extended hardware support beyond the first year requires an active subscription. AirLink Premium is optional and provides enhanced analytics and advance replacement coverage.

Deployment Support:
Deploying ultra-compact CBRS-capable routers involves careful planning — from SIM provisioning and antenna selection to edge container setup and remote configuration. Whether the XR60 is being used in a smart pole or a fleet vehicle, our team can help ensure successful deployment and long-term operability. Reach out here to get started.

This variant ships with:

• AirLink XR60 router
• DC power cable
• Quick start guide
• AirLink Complete subscription leaflet

We can bundle this device with SIMs, compatible RAN equipment, and end-to-end deployment support. Reach out to our expert team here or email us at [email protected].
